1.Introduction

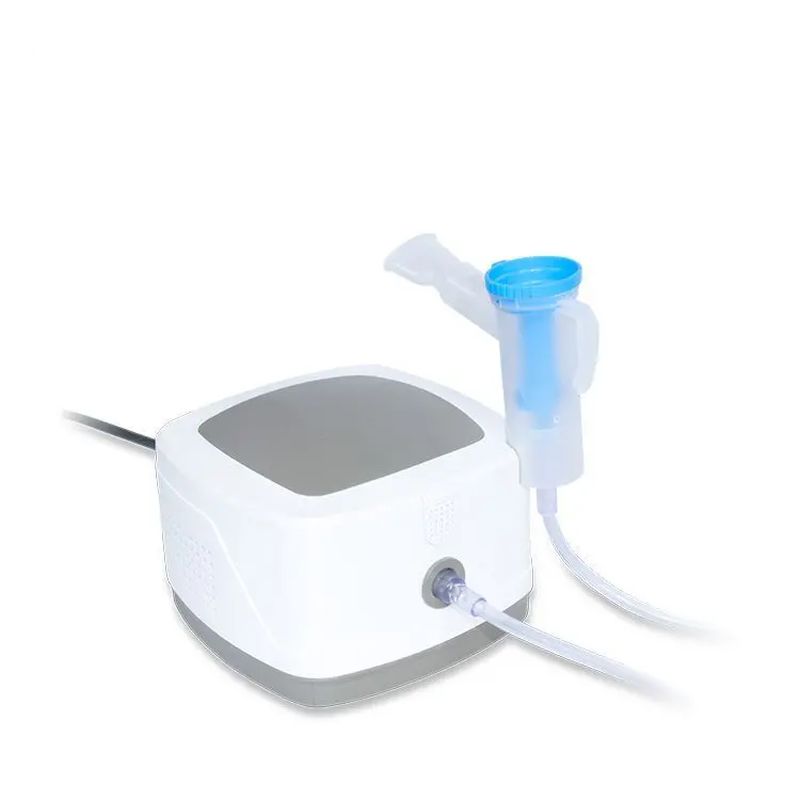

The compressor nebulizer drives the liquid medication to spray to small panel by the high-speed air flow produced by the compressor, then the liquid medication will change into atomized particles which are spurted out by the outlet. The tiny medication particles easily arrive lung and bronchus by breath, which are directly absorbed by human body. It is applicable for use in hospital, clinique and family.

2.Function

The compressor nebulizer can convert medication to tiny particles, which can be easily inhaled into respiratory system along with human breath to cure respiratory diseases such as acute and chronic tracheitis, bronchitis, sore throat and asthma, etc.

3.Specification

Power supply: AC220V, 50Hz

Input power: ＜150VA

Nebulization rate: >0.15mL/min

Medication residue: ≤ 0.7mL

Volume for atomizing cup: 8mL

Appropriate medication range: 2~8mL

Noise: ≤ 65dB

Gas flow: >10L/min

Max pressure: 280-450KPa

Type of protection against electric shock: Class Ⅱ

Degree of protection against electric shock: Type B applied part

Degree of waterproof and dustproof: IP22

4.Accessories

◆ User Manual    1

◆ Atomizing accessories (atomizing cup, air tubing, mouthpiece)    1 set

◆ Fuse tube    2

◆ Filter cotton    1bag (5)

5.Physical characteristic

Dimension: 158mm×158mm×107mm

Weight: 1.42Kg

6.Optional configuration

None

7.Selling points analysis

1) Small in particle size, easy to absorb.

2) Moderate in nebulization rate, which reduces medication waste.

3) Long in air tubing, convenient and flexible to use.

4) Low in medication residue, high in nebulization rate, less in medication waste.

5) Compact and lightweight design, convenient to carry.

6) Low in noise, which reduces interference to environments.

7) Built-in oil-free compressed vacuum pump, safe and durable to use.
